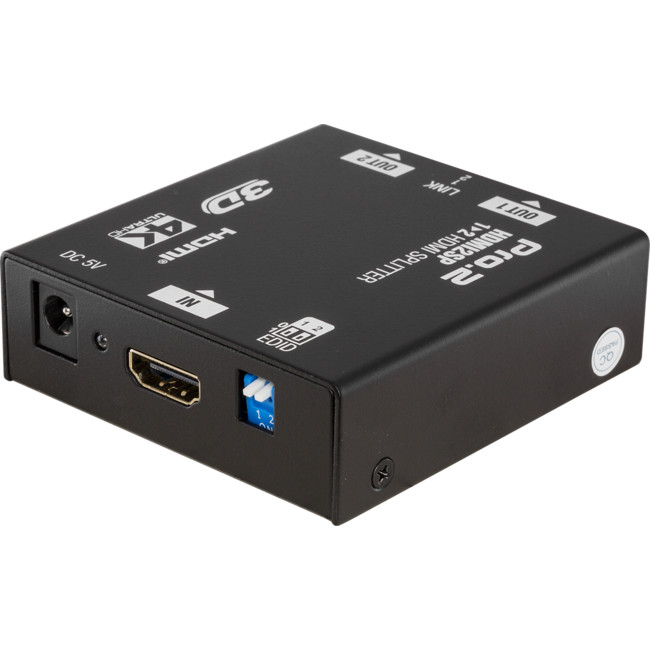

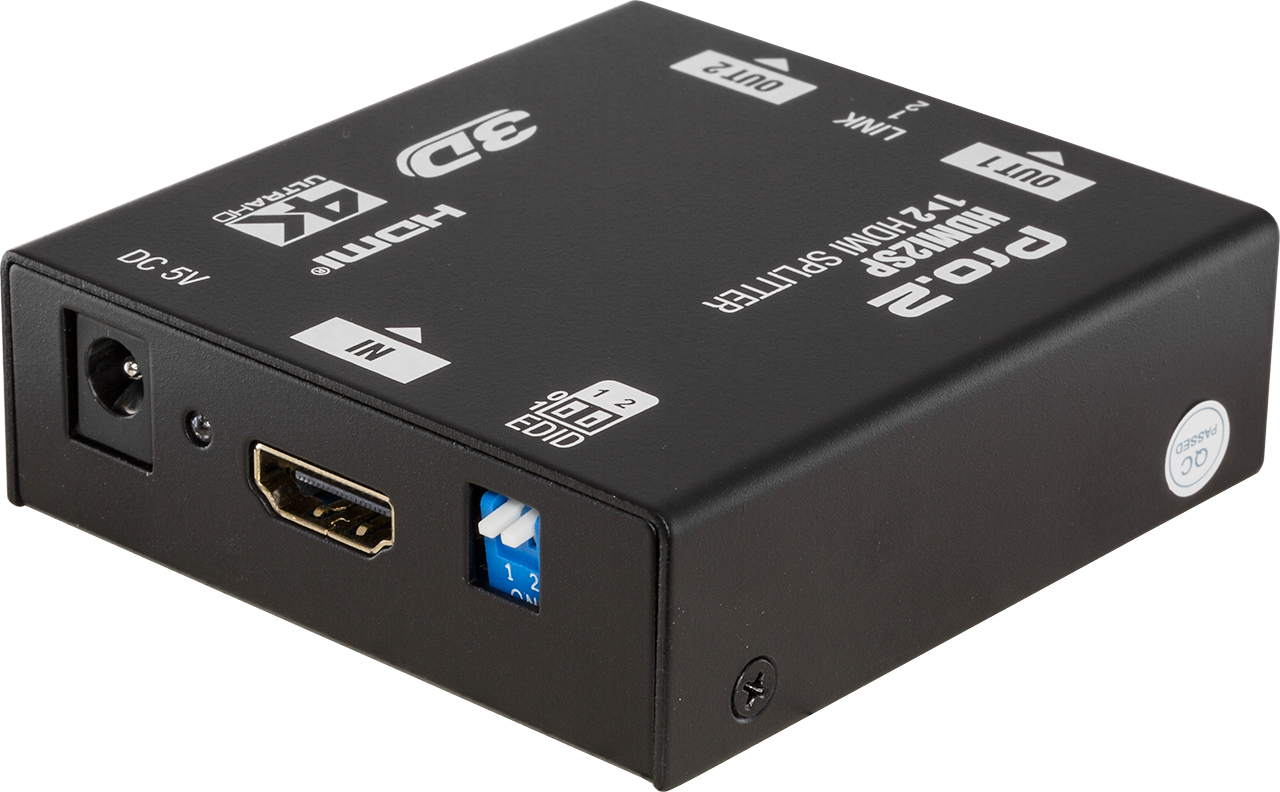

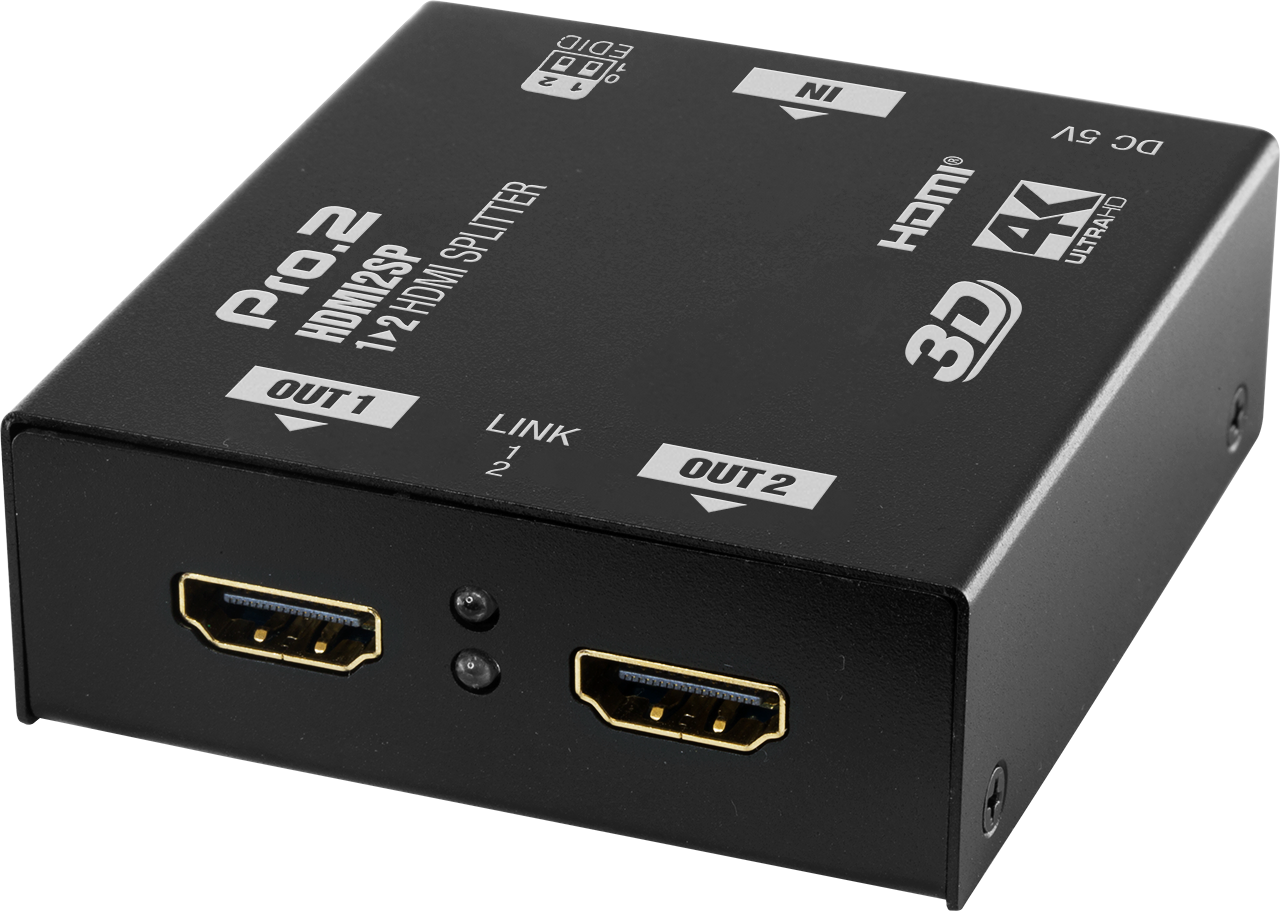

HDMI2SP 2 WAY HDMI SPLITTER 1 IN 2 OUT


Pro2’s high quality HDMI splitters take a single signalinput — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.

Our range provides an ideal solution from a simple homeinstallation to a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.

The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table td[align=center], .rpg_table th[align=center] { text-align:center; }
Model HDMI2SP HDMI4SP HDMI8SP HDMI16SP
Code 64510010 64510020 64510030 64510040
Description 2-WAY SPLITTER 4-WAYSPLITTER 8-WAYSPLITTER 16-WAY SPLITTER
HDMI Inputs 1 1 1 1
HDMI Outputs 2 4 8 16
3DSupport Yes Yes Yes
4K x 2K Yes Yes Yes
HDCP Compliance v1.4 v1.4 v1.4 v1.4
HDMI Resolutions 480p /
720p /
1080i /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480p /
720p /
1080i /
1080p@ 60 Hz /
4K x 2K @ 24 Hz
480i /
576i /
480p /
576p /
720p @ 120 Hz /
1080i @ 120 Hz /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480i /
480p /
576i /
576p /
720p /
1080i /
1080p @ 60 Hz
Audio Formats LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
DolbyTrueHD /
DTS-HD Master Audio
DolbyTrueHD /
DTS-HD Master Audio
Data Transfer Speed 6.75 Gbps
Input Video signal 5.0 Volts P-P (TTL) Single Link 5.0 Volts P-P (TTL) Single Link 0.5-1.0 Volts P-P
DDC Signal: 5 Volts P-P (TTL)
0.5-1.0 Volts P-P
Video Amplifier Bandwidth 140 MHz 140 MHz 140 MHz 140 MHz
Transmission Distance 15 metres using standard 26AWGcable
Power Supply (included) 5V 1A DC 5V 2ADC 5V 3ADC 5V 4ADC
Dimensions 88 x 47 x 25 mm 115 x62 x 25 mm 320 x120 x 35 mm 320 x140 x 42 mm
Weight 135g 190g 1120g 1450g
Power Consumption 3.5 W 5 W 10 W 20 W
Operating Temp. Range -15°C to 55°C (23°F to 95°F)
Operating Humidity Range 5 to 90% RH (no condensation)
