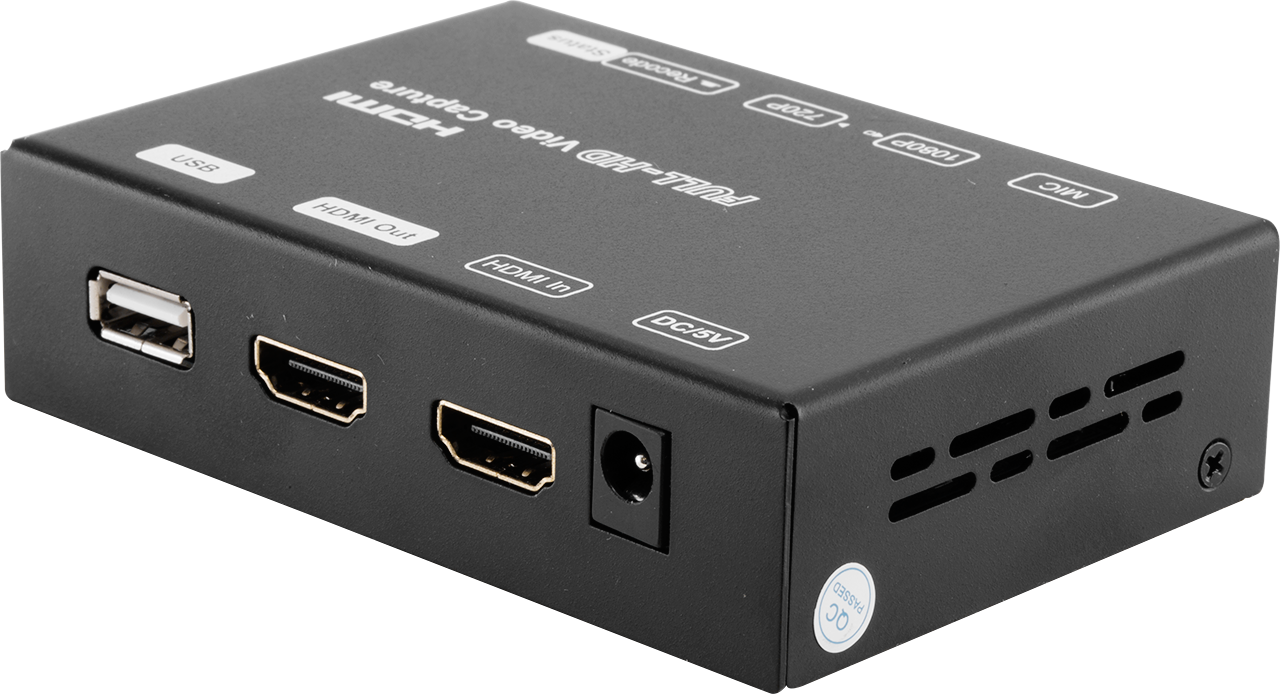

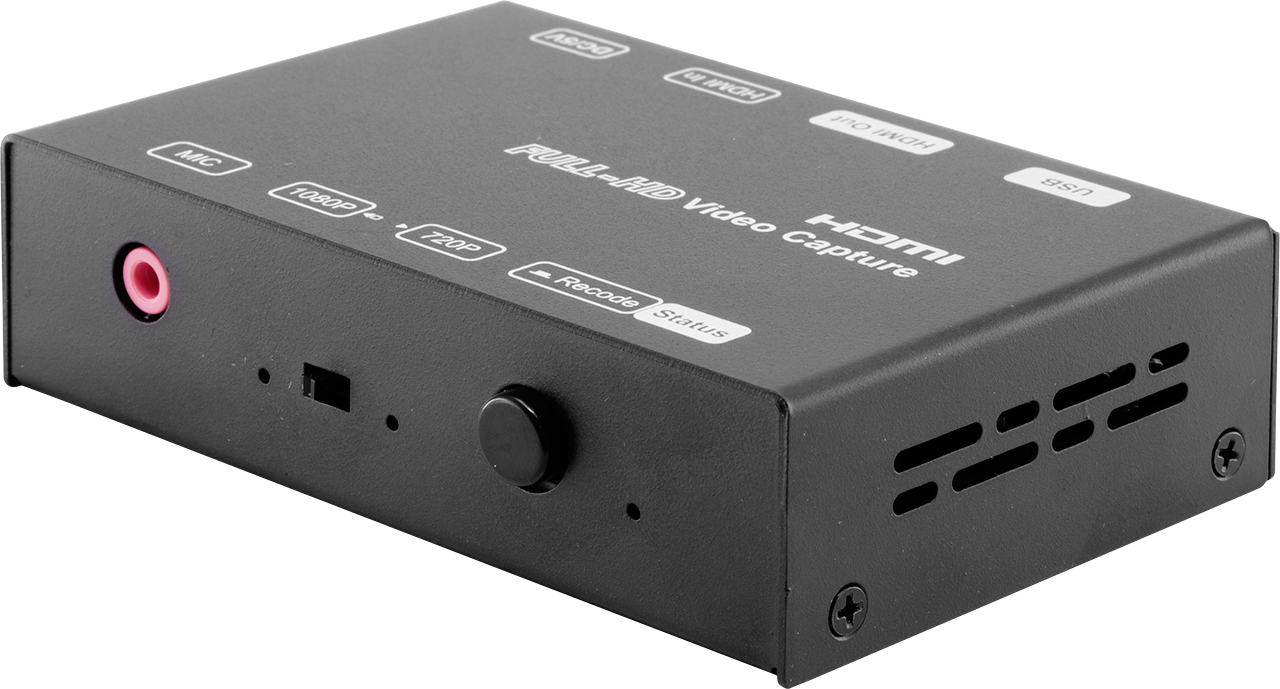

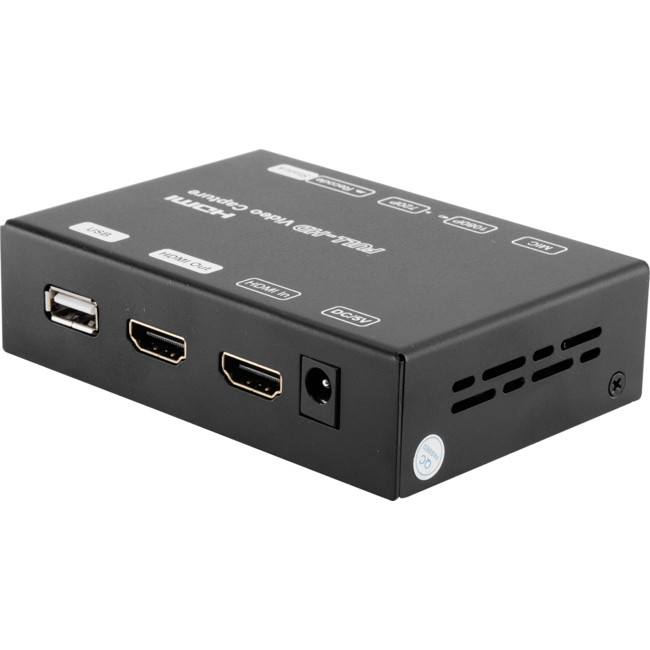

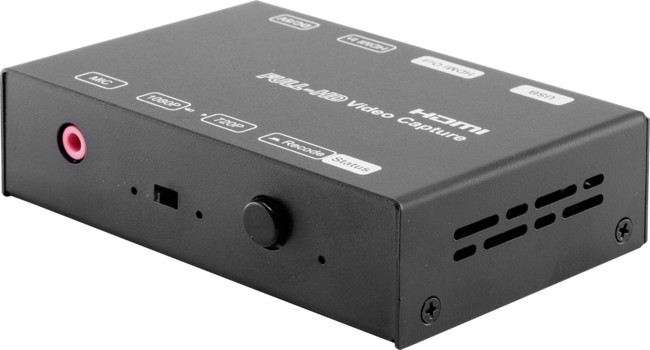

Are you a console gamer and want to share your moves, or is your PC taking CPU taking a hit while recording your gameplay? Perhaps you are selling AV equipment and want to record professional walk-throughs of your product’s menus. Don’t resort to pointing a camera at a screen! The Pro.2 HDVC01 records your HDMI video input—up to 1080P—directly to USB storage in h.264 encoding: no computer required!
Features
- Support HDMI signal source of PlayStation 4, Xbox One and Xbox 360 game play in brilliant 1080p@60Hz with advancedH.264 encoding
- Recording with one-click, easy to use. It doesn’t require any set up just click "RECORD" button to record yourgame play and re-click to stop recording
- Supports NTFS/FAT32 formatted USB storage
- Automatically split the video up to 2GB per file
- Support record video format of MPEG-4 and audio formatof RCA L/R 3.5mm microphone input
- Support upscale or downscale to 720P
Specifications
| Operating Temperature Range | -5 to +35°C |
| Operating Humidity Range | 5 to 90% RH (No Condensation) |
| Output Video Format | MPEG-4 |
| encoder | H.264 |
| Input resolution |
720×480 (60Hz)
720×576 (50Hz) 1280x720P (50Hz/60Hz) 1920x1080i (50Hz/60Hz) 1920x1080P (24Hz/25Hz/30Hz/50Hz/60Hz) |
| Capture resolution |
720×480 (60Hz)
720×576 (50Hz) 1280x720P (50Hz/60Hz) 1920x1080i (50Hz/60Hz) 1920x1080P (24Hz/25Hz/30Hz) |
| Support Audio Format | LPCM |
| Bandwidth | 2.25Gbps |
| USB | 2.0 |
| Power consumption | 3watts (Maximum) |
| Dimension (L×W×H) | 102.2×70.1×27.1mm |
| Net Weight | 220g |
