VGA

• Video Bandwidth: >500MHz
• Supported Resolutions: VGA, SVGA, XGA, SXGA, UXGA, QXGA, WUXGA, WQXGA
• Supports the DDC, DDC2, DDC2B. (For VGA Output1)
• Extended Distance: 60 Metres (VGA Output 1,2) / 100Metres (VGA Output 3,4)
• Gain and EQ Adjustments. (For VGA Output 3,4)
• Input/​Output Connector: HD-15 Female
• Can be cascaded.

Audio

• Operation Frequency: 50Hz~15KHz
• Input Impedance: 47K ohms
• Max. Audio Input: 5Vp-p
• Extended Distance: 100 Metres
• Input/​Output Connector: 3.5mm Mini-stereo Jack
• Can be cascaded.

Power & Dimensions

• Power Consumed: 100mA Max
• Power Source: DC 12 Volts
• Size (LxWxH): 205 mm x 93.5 mm x 31 mm
• Net Weight (Unit only): 0.46 Kg

The PRO1338 VGA Matrix is perfect for larger installations where multiple displays or projectors are required. Each of the four outputs can independently displayeither of the two inputs. Perfect for classroom and demonstration rooms, conferences and houses of worship, and even restaurant or shop displays! Great for huge impact in large environments using up to 4x projectors or for small conference rooms where several small monitors can be used.

Bars, clubs and function spaces can benefit from the flexible distribution of independent video and audio sourcesdepending on the size of the function — small functions mayonly require one projector while the remaining three outputscan display advertisements or sports throughout the rest of the venue!

• Allows two VGA source devices to provide video and audioto four displays / projectors.
• Front panel selection buttons.
• Each output can be set to input A or B
• Blue LED Indicator for PC Online
• Video and Audio can be cascaded

• VGA:
  • 300 MHz pixel frequency
  • Extended Distance: 65 metres
  • LED Indicator:
    • Source Online: Blue
    • Input A: Green
    • Input B: Red
  • Input/​Output Connector: HD-15 Female.
• Audio:
  • Operation Frequency: 20Hz~20kHz
  • Input Impedance: 47kΩ
  • Max. Audio Input: 4Vp-p
  • Extended Distance: 100 metres
  • Input/​Output Connector: 3.5mm Mini-stereo Jack
• Power:
  • Power Source: 12 VDC / 1.2A

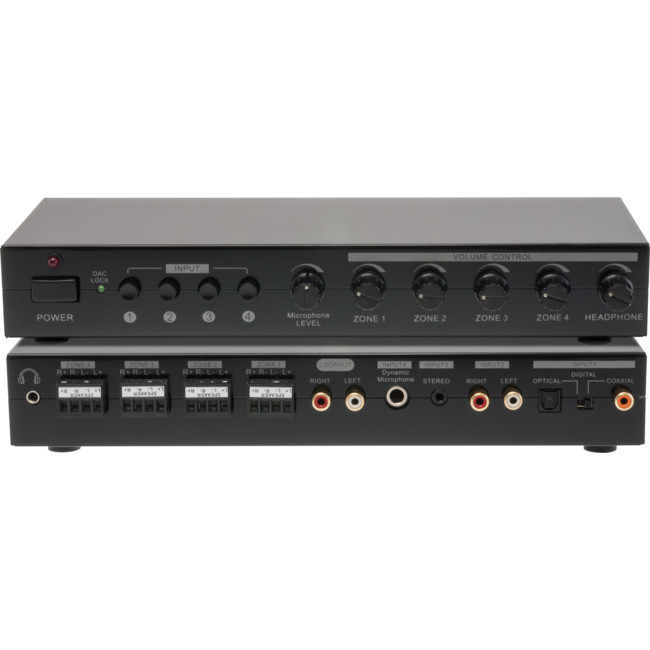

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone’s volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!

• Four-in and five-out
  • IN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone input
  • OUT: 4 Speaker output + 1 Headphone output
• Built-In audio digital to analogue converter (DAC)
  • Audio DAC Lock indicator
• Independent microphone level control
• Individual speaker volume control
• Provides line loop-out for expanding to more zones
• Large detachable terminal block (supplied) for quick andeasy installation
  • Screw terminals handle wire sizes from 24 to 12 gauge

Speaker Audio Power Amplifier (x4):

• Amplifier Type: Stereo Class-D
• Output power: 15W (RMS) per channel (@ RL=4 ohm)
• THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance: 4 ohm
• Includes Speaker Protection circuit.

Earphone Audio Power Amplifier:

• Output power:105mW (RMS) per channel
• THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
• Minimum Load Resistance: 16 ohm

Power & Dimensions:

• Power Consumed: 9A Max
• Power Source: DC 12 Volts
• Size (LxWxH): 285mm x 128mm x 43mm
• Net Weight (Unit only): 0.8 Kg

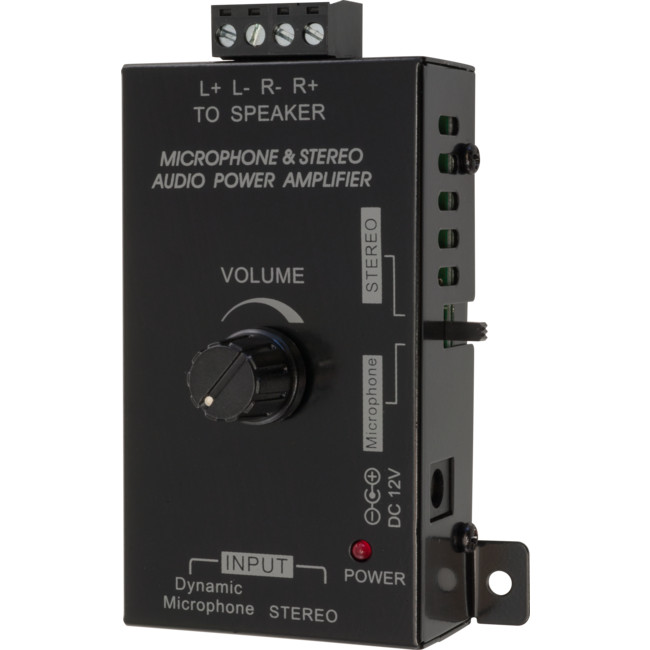

Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328is perfect for shop display installations, where basic audioamplification and compact size is required.

If your Flat Screen TV’s built-in speaker output is belowpar, the PRO1328 can provide an elegant solution to add you own passive speakers for clearer and more powerful listening!

With the abilty to switch from line-level to dynamic microphone input, the PRO1328 can be used to give your shop displays and demonstrations more reach!

Ideal for use with:

• Computers
• DVD players
• TV’s
• Microphones

• Small size and compact
• Also suitable for wall-mounting
• Works with 4Ω, 6Ω and 8Ω speakers
• To speaker screw terminals handle wire sizes from 24 to 12 gauge

• Inputs: Dynamic microphone or stereo audio line level
• Microphone pre-Amplifier gain: 40dB
• Power Amplifier Type: Stereo Class-D
• Output power: 15W (rms) per channel (@ RL=4 ohm)
• THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance: 4Ω
• Includes Speaker Protection circuit.
• Power Source: 12 VDC / 2A (included)
• Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
• Net Weight (Unit only): 160 g

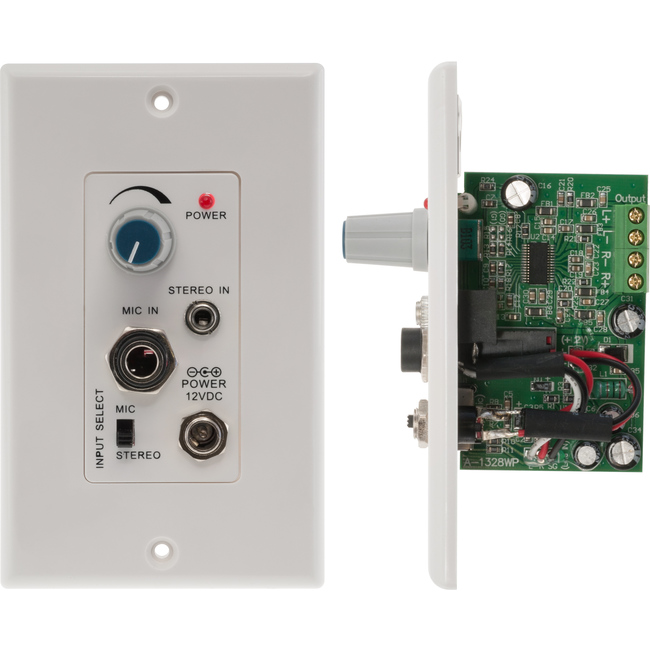

Use the PRO1328WP to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328WP is perfect for shop display installations, where basic audio amplification and compact size is required.

With the ability to switch from line-level to dynamic microphone input, the PRO1328WP can be used to give your shop displays and demonstrations more reach!

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra ‘boxes’ lying around! Great for indoor/​outdoor speaker systems where simple and discrete convenience is paramount.

Ideal for use with:

• DVD players
• TV’s
• Indoor/​Outdoor Speakers
• In-ceiling/​in-wall Speakers

• Switch between 3.5mm (line) or microphone inputs
• Discrete and compact Decora-style wall-plate design
• Suitable for 4Ω, 6Ω and 8Ω speakers
• Speaker screw terminals handle wire sizes from 24 to 12 gauge

• Inputs: Dynamic microphone or stereo audio line level
• Microphone pre-Amplifier gain: 40dB
• Power Amplifier Type: Stereo Class-D
• Output power: 15W (rms) per channel (@ RL=4 Ω)
• THD+N: 0.06 % (@ RL=8 Ω, f = 1 kHz)
• Minimum Load Resistance: 4Ω
• Includes Speaker Protection circuit
• Power Source: 12 VDC / 2A (included)
• Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
• Net Weight (Unit only): 160 g

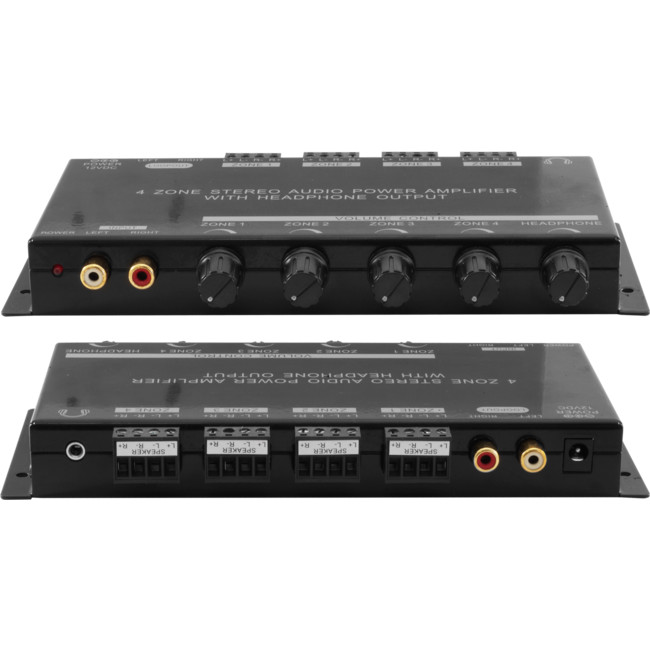

• 15 Watts per channel
• Speaker volume control
• Class D power amplifier
• Speaker protection circuit
• Large detachable terminal block (supplied) for quick andeasy installation.
• Screw terminals handle wire sizes from 24 to 12 gauge.

Connections

1. Input: 3.5mm stereo
2. Input 6.5mm stereo – dynamic microphone
3. Speaker outputs: for 1 speaker pair (via screw terminals)

• Inputs: Dynamic microphone or setreo audio line level
• Mircophone pre-Amplifier gain: 40dB
• Speaker Audio Power Amplifier:
• Power Amplifier Type:Stereo Class-D
• Output power:15W (rms) per channel (@ RL=4 ohm)
• THD+N: 0.06 % (@ RL=8 ohm, f= 1 kHz)
• Minimum Load Resistance: 4 ohm
• Includes Speaker Protection circuit

Power & Dimensions:

• Power Consumed: 2A Max
• Power Source: DC 12 Volts 2A (included)
• Size (LxWxH): 115mm x 98 mm x 31mm

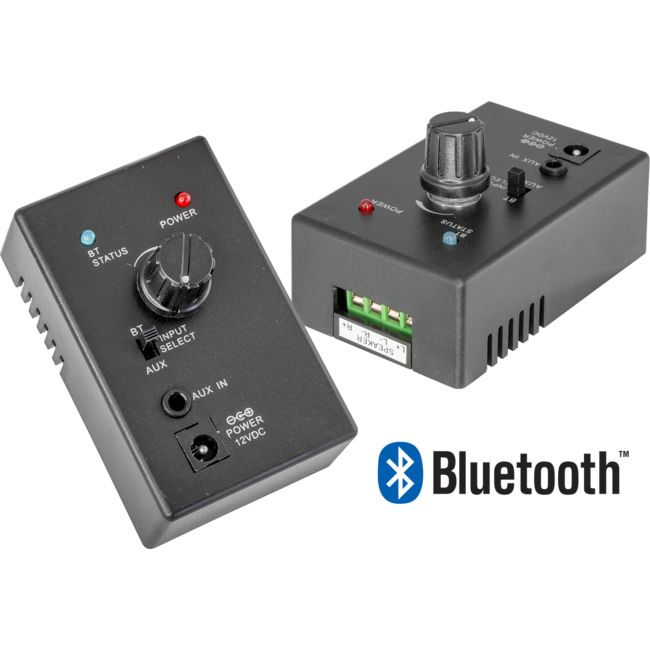

Use the PRO1351 to power in-ceiling speakers with the audio from any Bluetooth enabled device, or other source device such as computers, DVD players, and TVs! Perfect for permanent audio installations in entertaining areas, and even bedrooms

Ideal for installing where volume control is not intendedto be adjusted by end-users!

Ideal for use with:

• Mobile devices with Bluetooth audio
• DVD players
• TV’s
• Indoor/​Outdoor Speakers
• In-ceiling/​in-wall Speakers

• Bluetooth wireles audio receiver built-in
• Switch between Bluetooth or 3.5mm (line) inputs
• Compact design
• Volume control
• Suitable for 4Ω, 6Ω and 8Ω speakers
• Includes Speaker Protection circuit

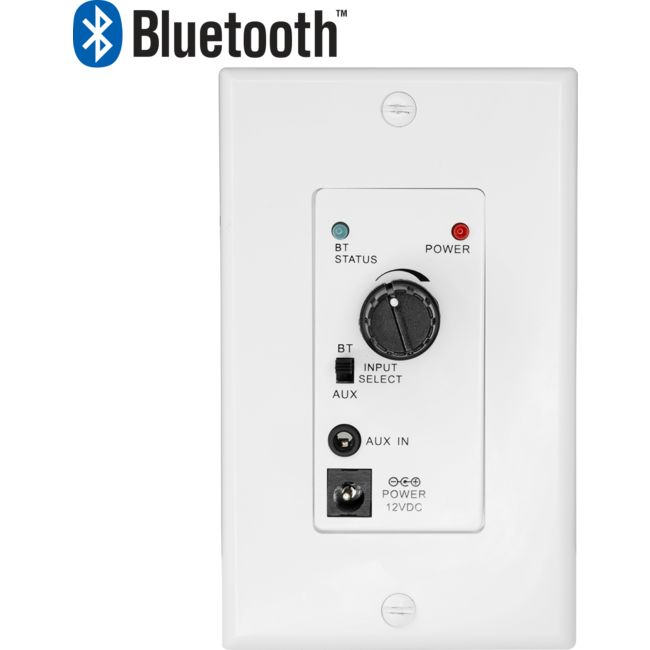

Use the PRO1351WP to power in-ceiling speakers with the audio from any Bluetooth enabled device, or other source device such as computers, DVD players, and TVs! Creates a neat, clean solution for permanent audio installations that makes it perfect for entertaining areas, and even bedrooms

Perfect for upgrading existing wallplate amp modules withits rear/​in-wall power and audio connections! Add Bluetooth to your existing multi-room local input amp.

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra ‘boxes’ lying around! Great for indoor/​outdoor speaker systems where simple and discrete convenience is paramount.

Ideal for use with:

• Mobile devices with Bluetooth audio
• DVD players
• TV’s
• Indoor/​Outdoor Speakers
• In-ceiling/​in-wall Speakers

• Bluetooth wireles audio receiver built-in
• Switch between Bluetooth or 3.5mm (line) inputs
• Discrete and compact Decora-style wall-plate design
• Volume control
• Suitable for 4Ω, 6Ω and 8Ω speakers
• Speaker screw terminals handle wire sizes from 24 to 12 gauge
• Rear and front Power and Audio input connections for neat installation
• Includes Speaker Protection circuit
